Illuminated Curved Wall

Swedish Wood presents the nominees for the Swedish Wood Award 2016 at the Swedish Embassy in Tokyo, Japan.

Curved Wall Tokyo

APX-MOCKBA-NEXT 2017


Graphical Design and Concept

Limitations. Nothing in the embassy can be fixed to the walls. The construcion needs to be self supported.



Solution, a simple curved aluminum wall with a radius matching that of the existing curved wall at the embassy.

Curved-Wall-Jp-08.svg

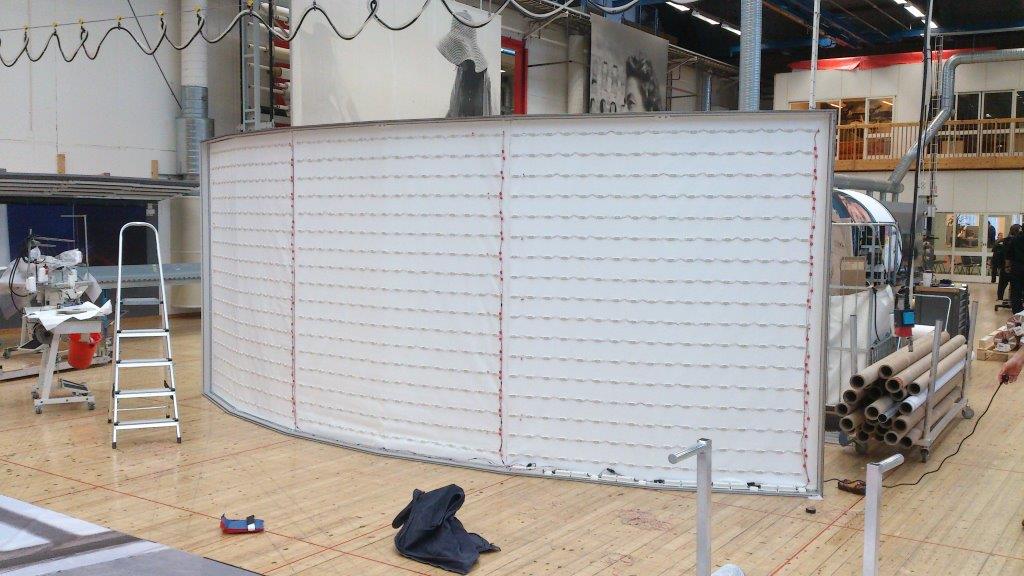

Solution – Backlit image on fabric


Construction, aluminum frame

jp-curve-room



Assembly Instructions

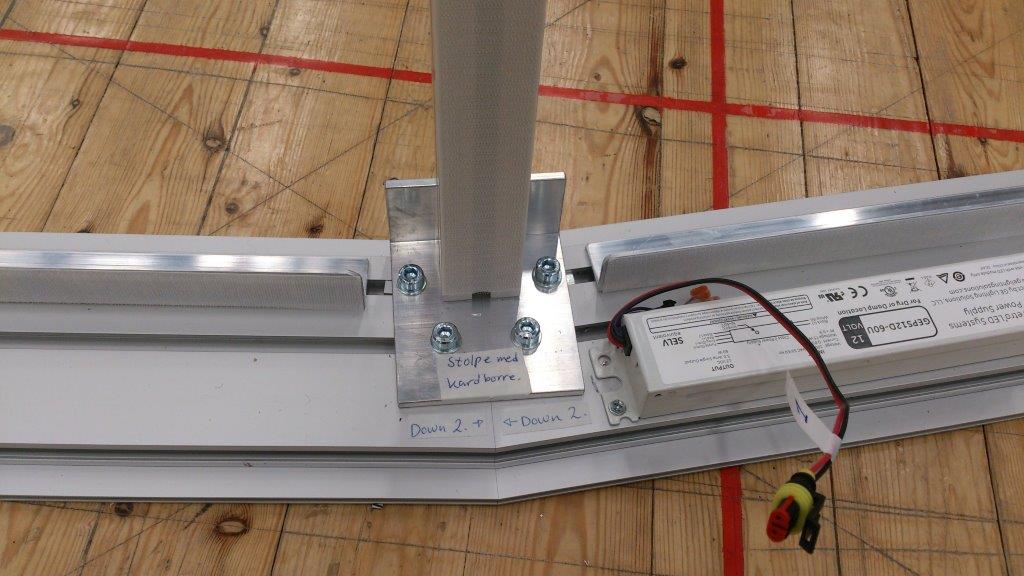

Pieces are marked where they should go, allen keys needed.

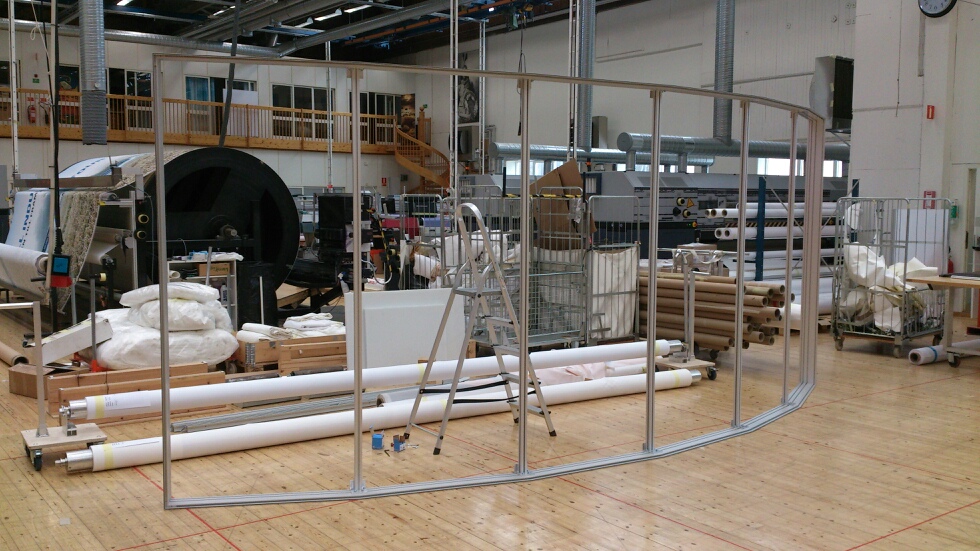

Assembled aluminum frame.

bigimage-frame01

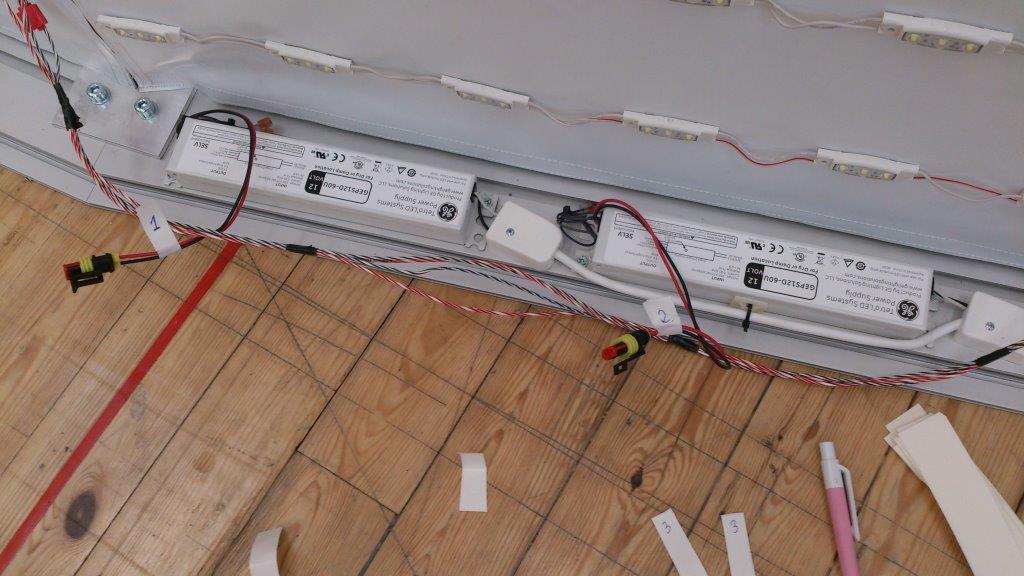

Electrical cords are marked with numbers.

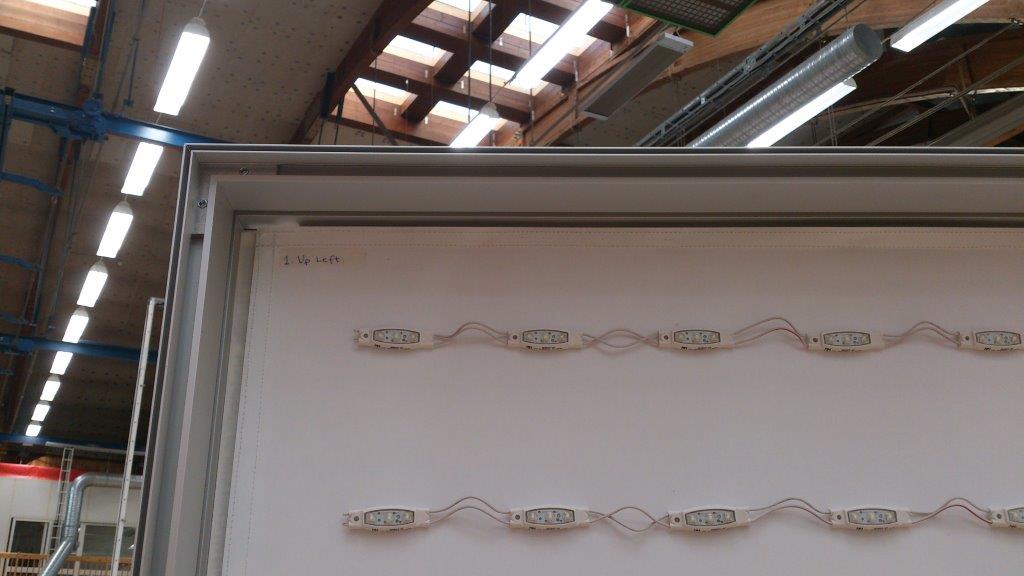

Mount the LED panel from the front, start from the top and work your way down.


Please note markings on LED-panel.

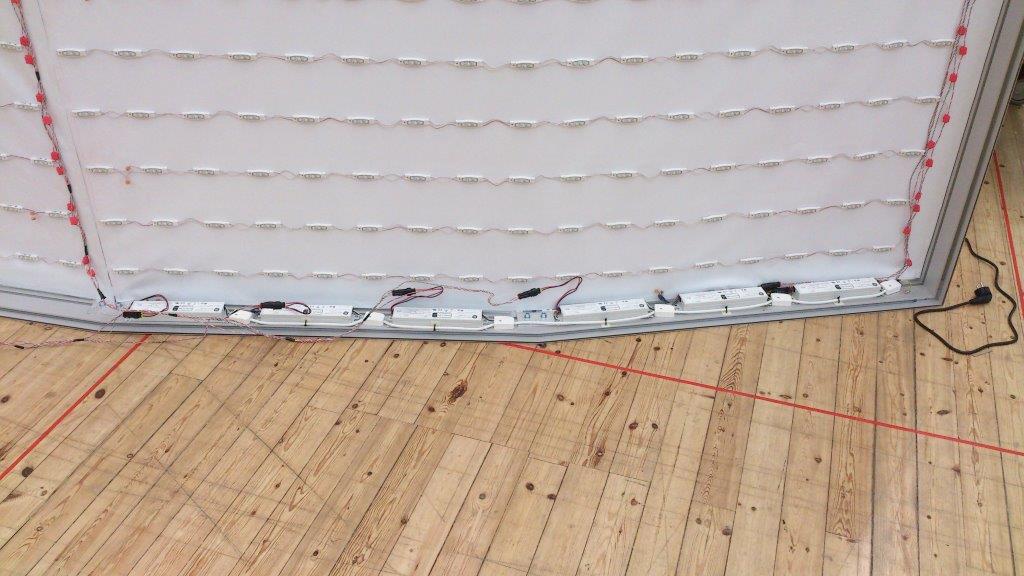

LED-panel constitutes of 3 separate pieces and are attached with velcro straps.

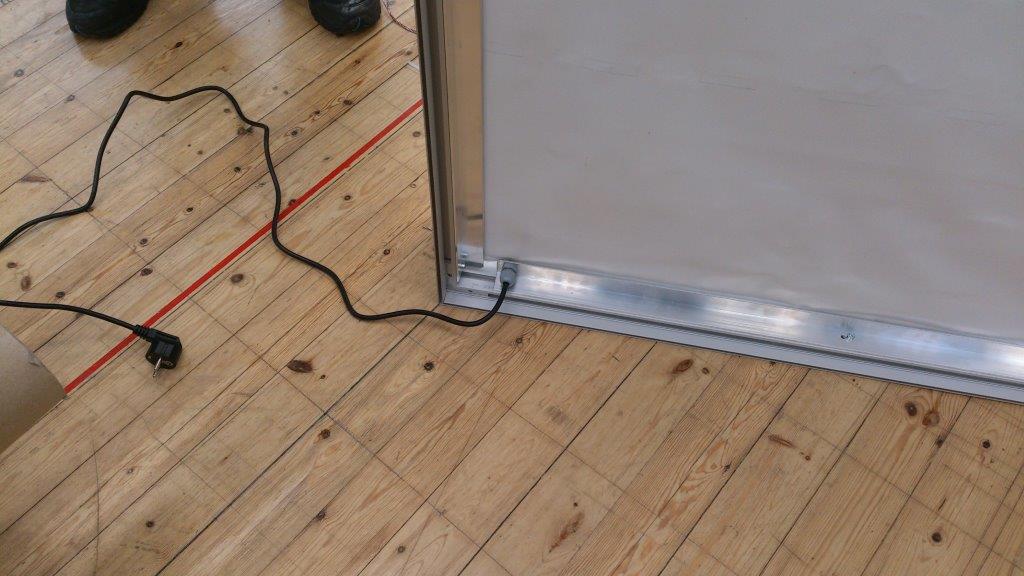

Please note, adapter is needed. Transformers can handle 100 - 230 V.


Image Mounting

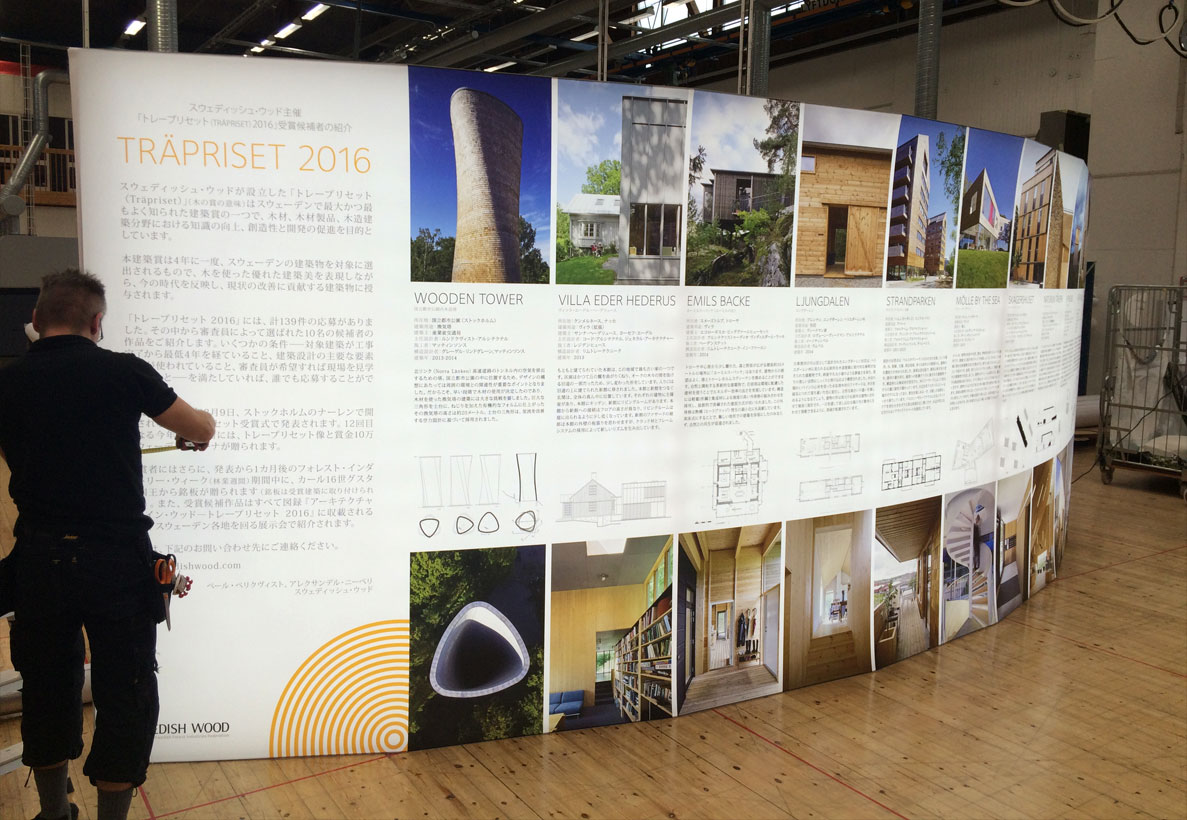

Start from the top right corner and work your way all across the top and then down (minimum 2 persons).


Try to protect the image from stains and dirt
